XL full-body

coverage
1,650W

actual power
eight-wavelengths

near + infrared leds
curved panel

optimized coverage

‎

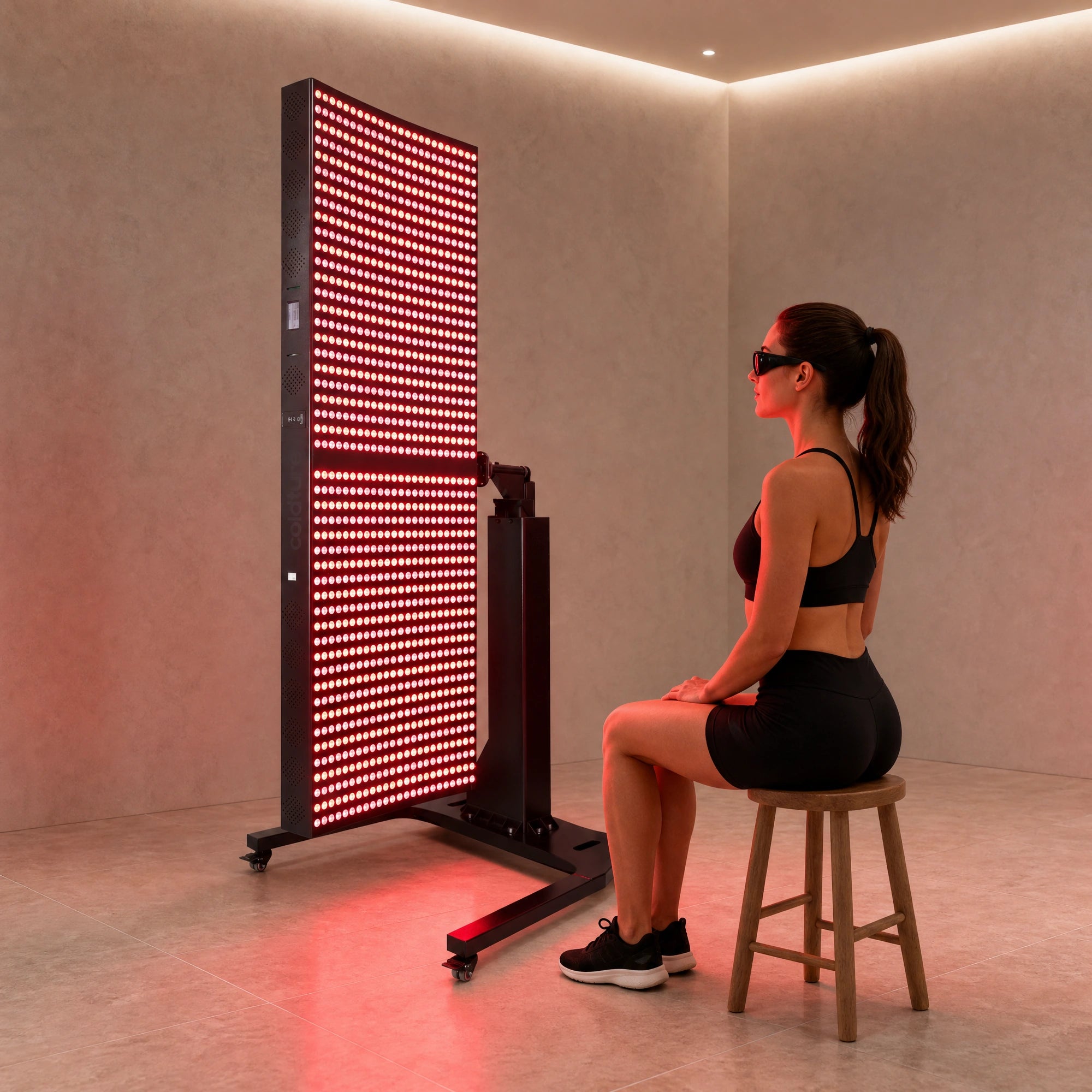

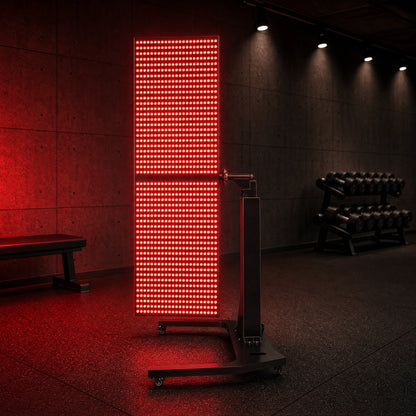

XTREME | Full Body Red Light Panel

Name: XTREME | Full Body Red Light Panel
Brand: Coldture Wellness
SKU: CT-RLT-XTREME-XL-V1
Price: 9999.00 CAD
Availability: InStock

$9,999 CAD

1,152 dual-chip LEDs, 60% more than the pro panel. head to toe in one pass.

1,650W actual power, ≥1,400 W/m² at 6 inches

curved panel design for optimized body coverage

8 wavelengths including 1060nm deep tissue

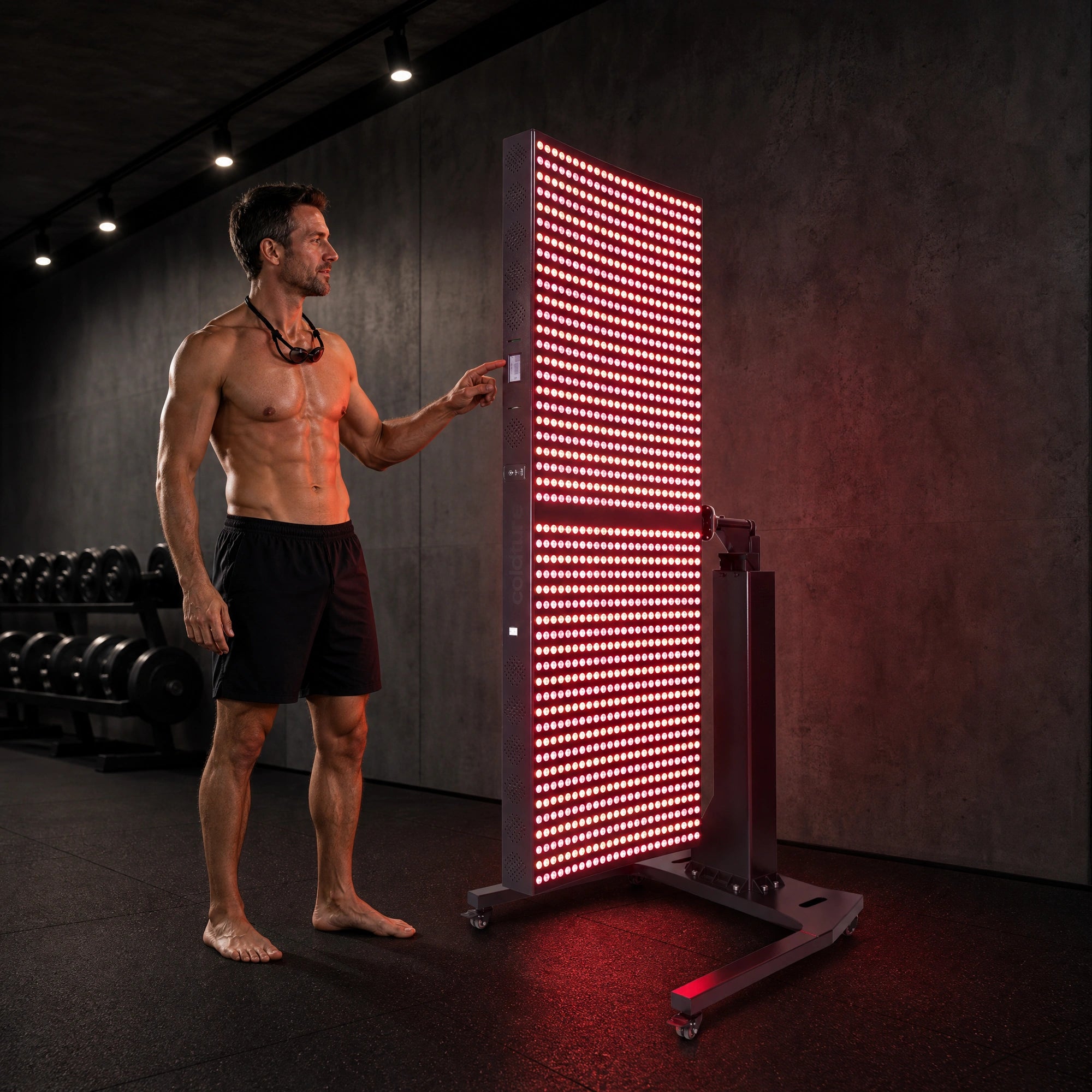

mounts above the bed for 360°, or stands alone on included stand

Product variants

XTREME | Full Body Red Light Panel

$9,999 CAD

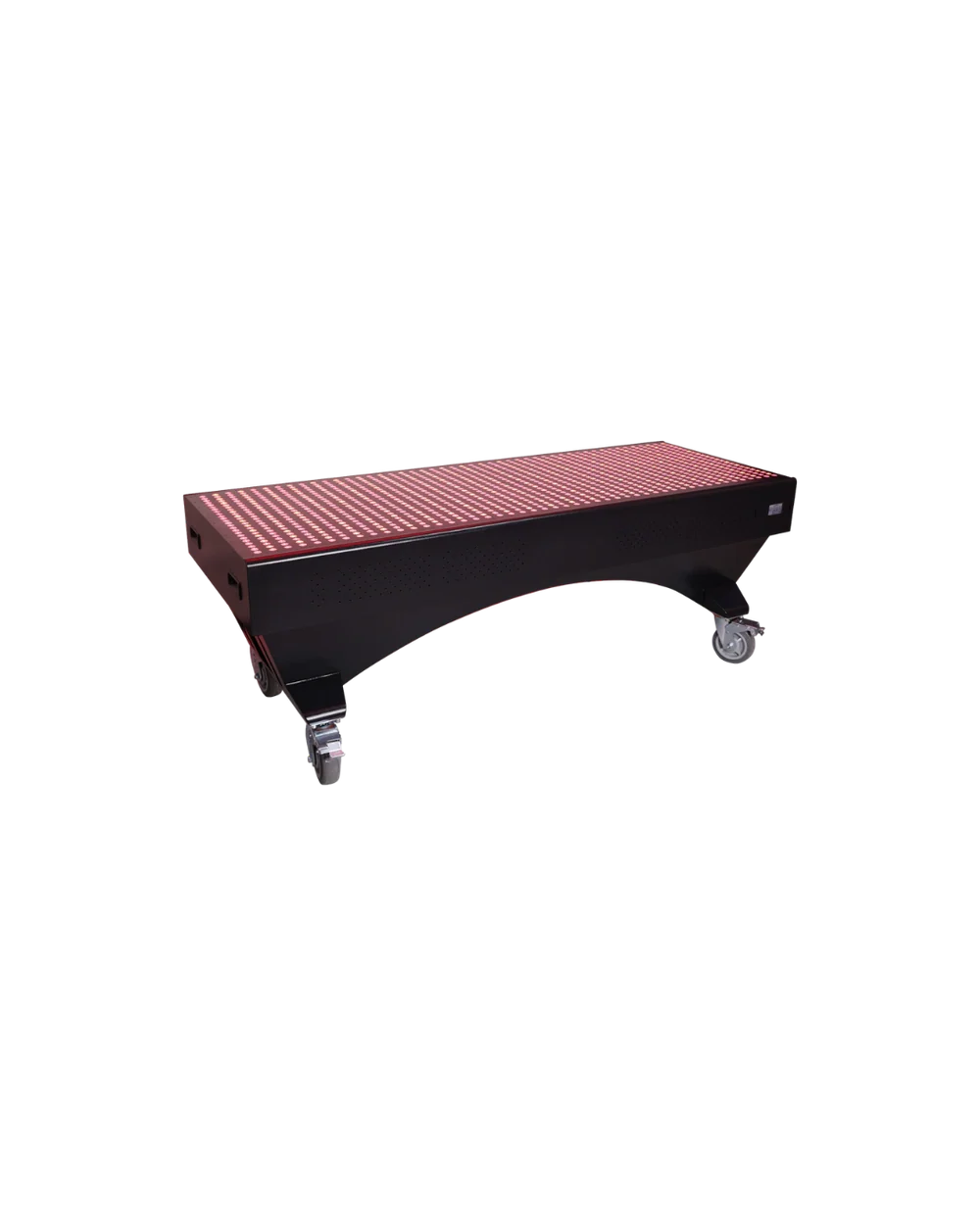

Bed | Lay-Down Red Light System

+

$20,500 CAD

Pairs well with

1-year warranty on parts

in-house support team

pay over time with affirm

delivered in 8-10 weeks

build a complete 360° system:

save $3,500

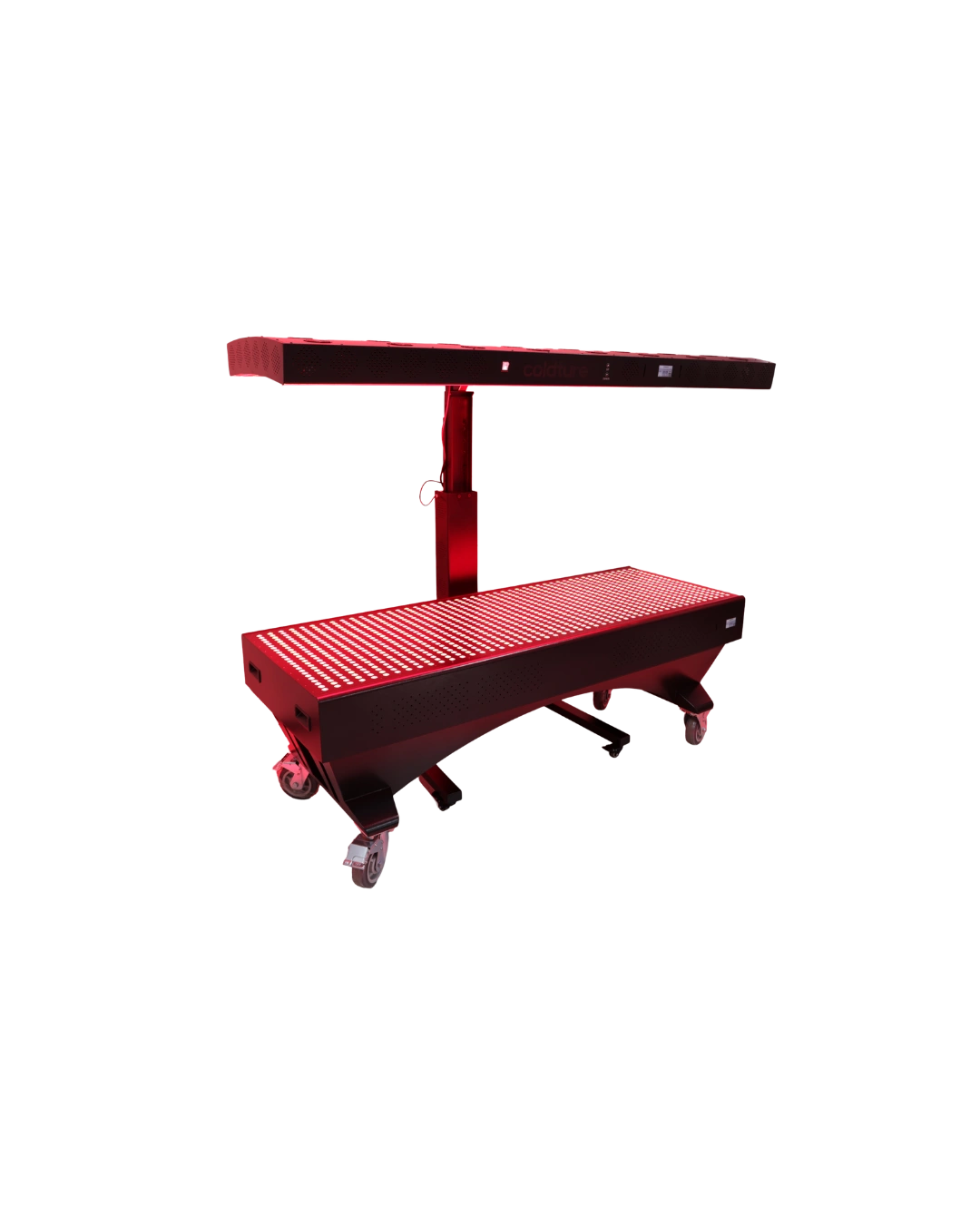

360° recovery system | bed + xtreme red light therapy

$26,999 CAD $30,499 CAD

view details

XL full-body

coverage
1,650W

actual power
eight-wavelengths

near + infrared leds
curved panel

optimized coverage

XTREME | Full Body Red Light Panel

$9,999 CAD

free personal consultation

our coldture specialist will help you find which red light is right for you.

SCHEDULE A CALL

features

XL Full-Body Therapeutic Coverage

1,152 dual-chip LEDs across a 1,924mm
body deliver consistent head-to-toe exposure for recovery, circulation, and
cellular support. no repositioning required.

Research Backed Multi Wavelength Spectrum

eight targeted red and near infrared
wavelengths support both surface-level skin and deeper tissue recovery across
multiple depths.

Maximum Intensity Output

≥1,400 W/m² at 6 inches. the highest
irradiance in the coldture lineup. equivalent dose in less time.

Intuitive Touch Screen Control Interface

simple, fast controls built for daily
use.

7 Smart Presets for Automatic Treatments

wellness, skincare, sleep, muscle
recovery, pets, fat loss, joint support.

Adjustable Dimming for Each Wavelength

fine-tune intensity from 0 to 100% by
wavelength for a personalized session.

Precision Session Controls

independent wavelength, brightness,
flicker-free, and pulsing adjustments for exact tuning.

Adjustable Pulsing

tune pulsing from 1 to 10,000 Hz per
wavelength.

User Friendly Remote Control and App Control

run sessions and presets directly from
your phone or the included 2.4G remote controller.

Digital Timer with Alerts

keep sessions consistent and within your
optimal range.

Bluetooth Connectivity

seamless pairing for smarter control
features via the INFRALIGHT app.

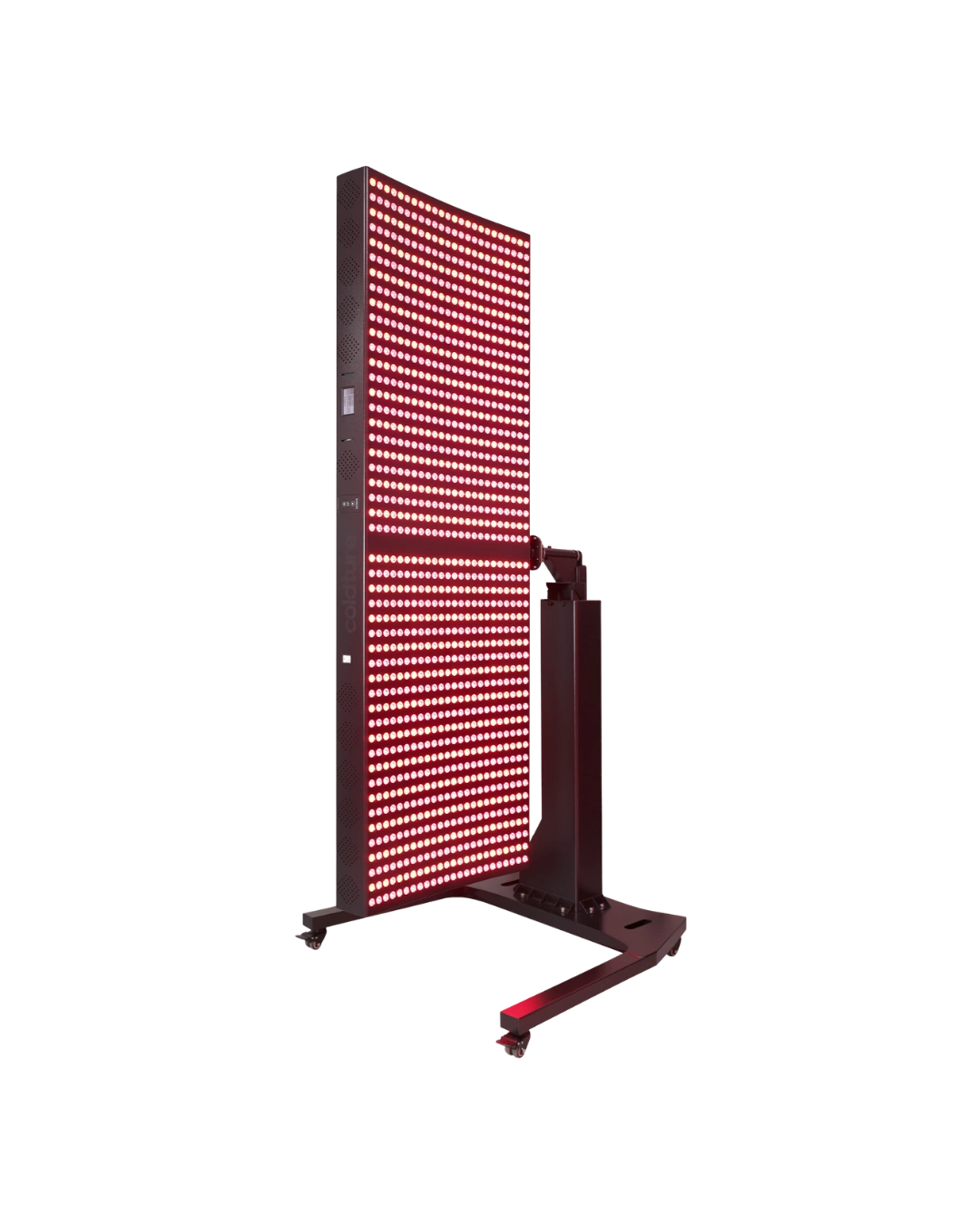

Dual-Use Design

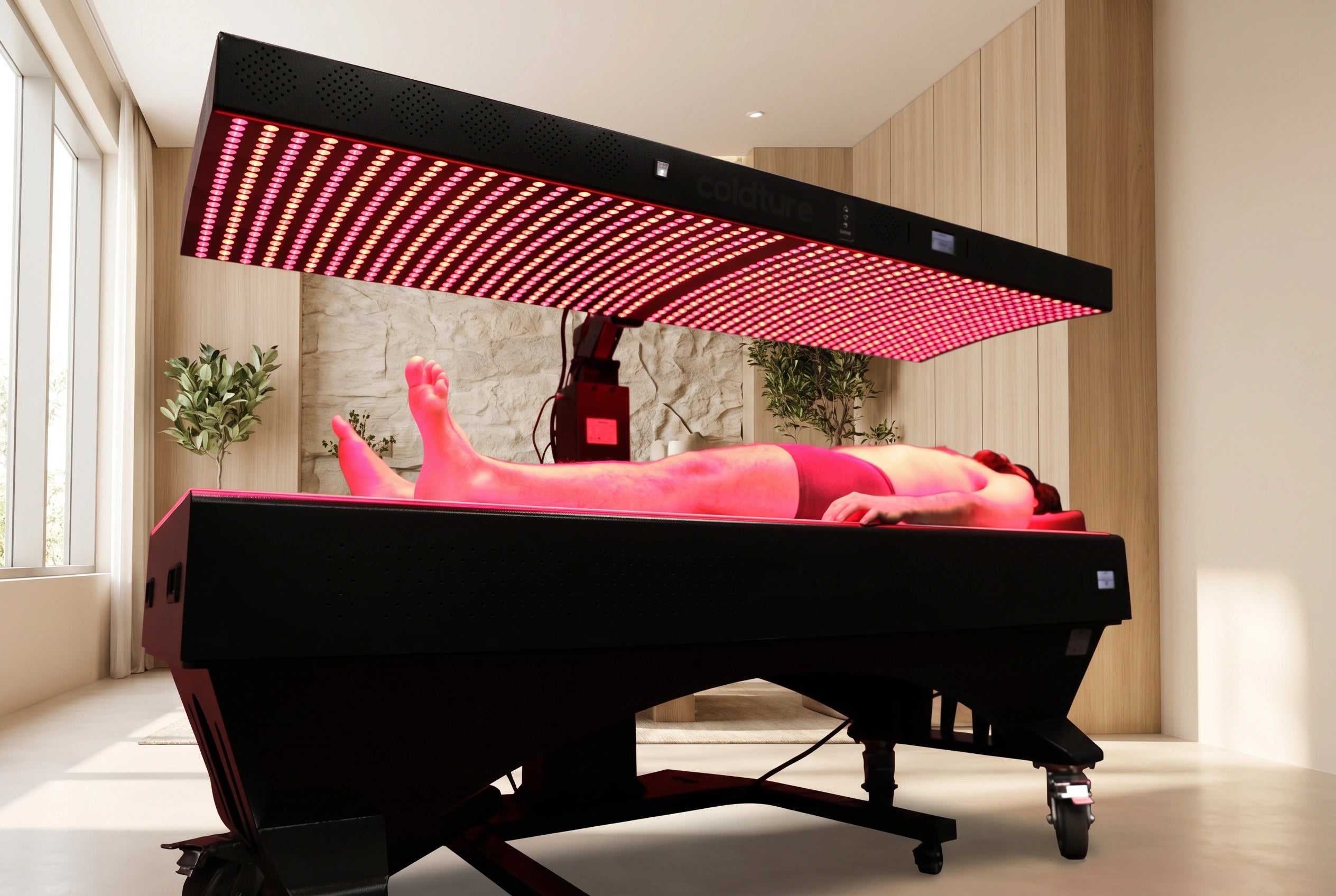

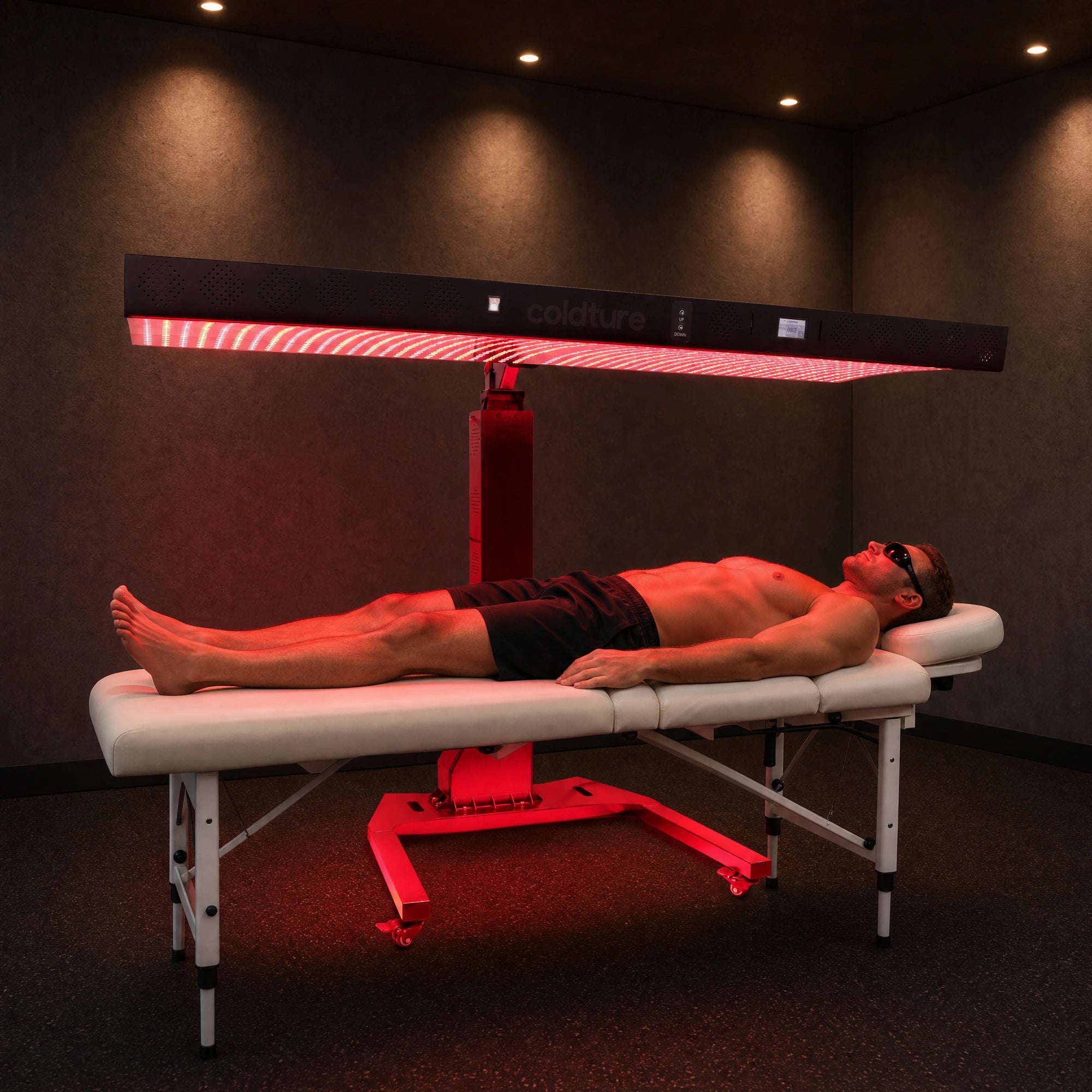

mounts above the coldture bed for 360°
recovery, or installs on the included heavy-duty stand for vertical full-body
sessions.

360° System Ready

pair with the coldture bed (sold
separately) for complete bottom-up coverage. sync both devices through group
mode on the touch screen.

Built for Commercial and Home Use

iron housing, 50,000-hour LED lifespan,
and integrated cooling system. designed for daily multi-client use in clinics,
spas, and studios, or dedicated home recovery rooms.

specification

wavelength spectrum

• 480 nm (blue), 590 nm (yellow)

• 630 nm, 650 nm, 660 nm, 670 nm (red)

• 810 nm, 830 nm, 850 nm (near infrared)

• 1060 nm (deep tissue)

led configuration

• 1,152 dual-chip LEDs

actual power output

• 1,650 W ±10%

light density (at 6 in)

• all wavelengths ≥1,400 W/m²

• red ≥150 W/m²

• near infrared ≥1,200 W/m²

brightness control

• 1-100%, independently adjustable per wavelength

flicker control

• 1-10,000 Hz, independently adjustable per wavelength

control interface

• touch screen

remote control

• 2.4G wireless remote supported

bluetooth / app

• supported (INFRALIGHT app)

input voltage

• 100-240 V AC

working current

• 14 A ±5% at 220 V

• 16 A ±5% at 110 V

frequency

• 50 / 60 Hz

lens

• 30°

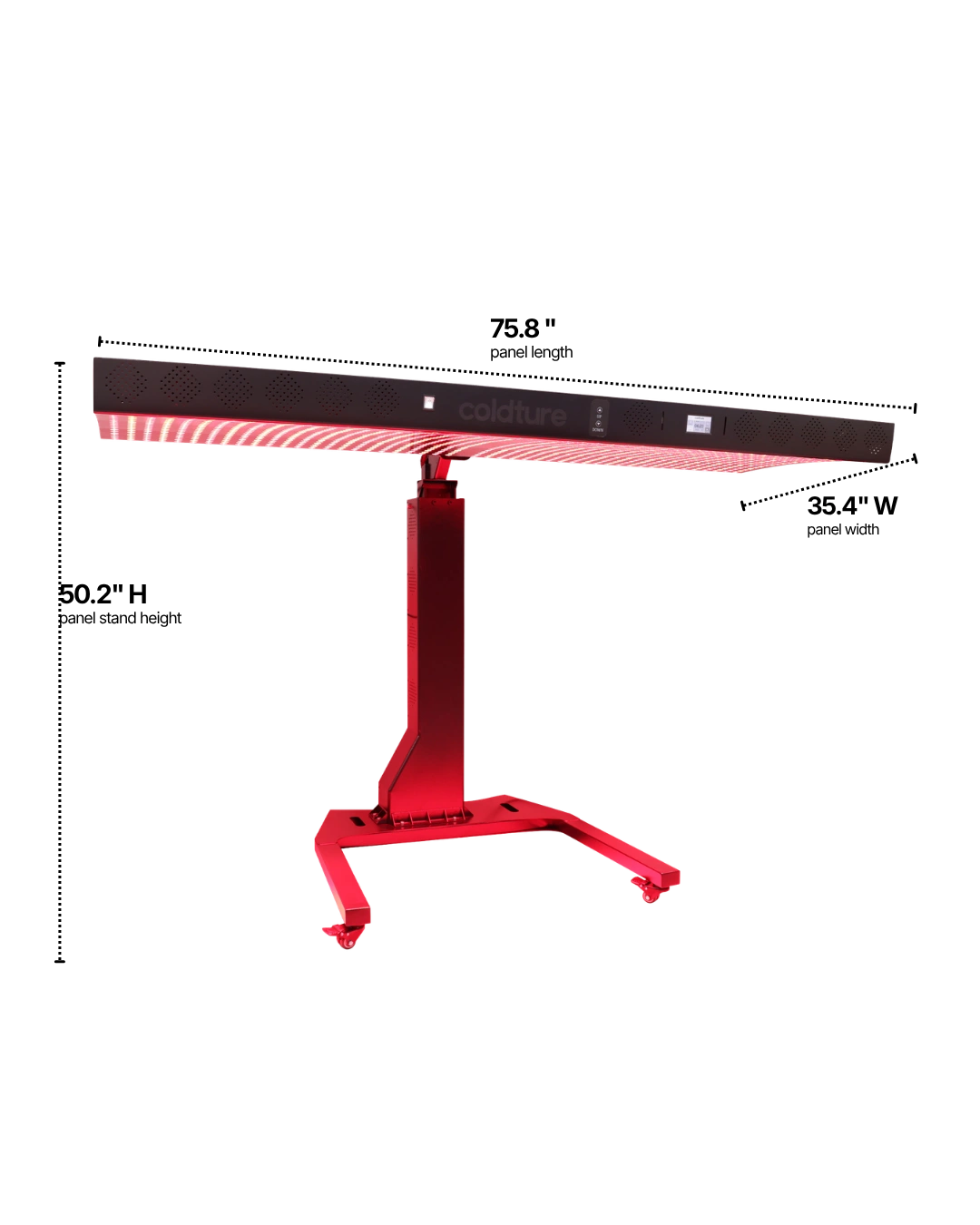

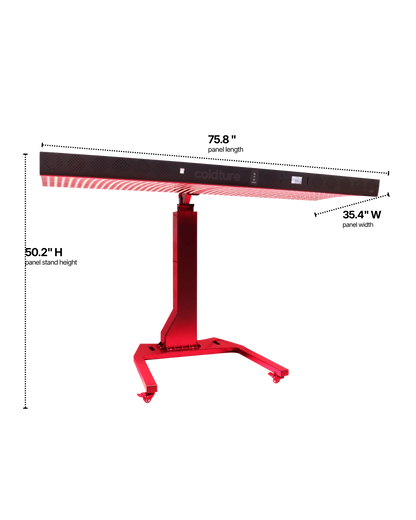

dimensions (with stand)

75.8 x 35.4 x 50.2 inches (L x W x H)

shell material

• iron

shell colour

• black

gross weight

• 116 kg ±0.5 kg

cooling

• integrated cooling system with fans

package includes

• panel, stand with base frame and locking casters, power cable with plug, remote controller,
protective goggles, user manual

presets

• 7 smart presets + full manual mode

financing options

we’ve partnered with trusted financing providers to offer flexible pay-over-time options. all loans are open, meaning you can pay them off early at any time without penalty.

affirm (as low as $262/month)

6-month term at 0% apr
12-month term at 0% apr
24-month term at 9.98% apr

rates based on 0–31.99% apr. subject to eligibility and approval.

apply at checkout by selecting affirm in the payment section.

pay plan by rbc (as low as $183.25/month)

12-month term at 0% apr
24-month term at 10% apr
36-month term at 10% apr

rates based on 0–18.99% apr. subject to eligibility and approval.

apply at checkout by selecting pay plan by rbc in the payment section.

financeit (as low as $17.63/week)

amortization periods up to 240 months
3.99% apr

rates based on 13.99–18.99% apr. subject to eligibility and approval.

apply here

shipping & returns

we ship across canada and the united states. delivery timelines vary by product and location, and our team will confirm an estimated delivery window after purchase. you’ll receive updates and tracking information as your order moves through fulfillment.

international shipping may be available on a case-by-case basis. if you’re located outside north america, contact us at support@coldture.com and we’ll help determine next steps.

returns, warranties, and delivery details are outlined in our full shipping & return policy.

view return policy

maximum output. maximum coverage.

1,152 dual-chip LEDs on a curved surface that wraps light around your body. the xtreme delivers ≥1,400 W/m² at 6 inches across a 1,924mm panel, covering your full body from head to toe without repositioning.

60% more LEDs than the pro panel. mounts above the bed for 360° coverage, or stands alone on the included heavy-duty stand. iron housing, integrated cooling, 50,000-hour LEDs, built for daily use.

• improved circulation • full-body recovery • skin health • muscle support • cellular energy • passive sessions • deeper tissue support • posterior chain coverage

XL coverage

60% more LEDs than the pro panel.

at 1,924mm tall and 900mm wide, the xtreme eliminates repositioning. head to toe, front or back, in a single pass.

curved design

light that wraps around your body.

the curved panel surface delivers more even exposure than flat designs. reduces hotspots and dead zones for consistent coverage across your entire body.

clinical irradiance

≥1,400 W/m² at a real working distance.

irradiance measured at 6 inches, not at the LED surface. more light reaches your cells at the distance you actually use the device.

dual-use design

standalone panel. or 360° system.

use the included stand for vertical sessions. or mount above the coldture bed for 360° coverage. 2,304 total LEDs. 3,300W combined. one session, every angle.

explore the bed

Save $3,500

360° recovery system | bed + xtreme red light therapy

$26,999 CAD $30,499 CAD

360°

full-body coverage

3,300W

combined power

NEW

XTREME | Full Body Red Light Panel

$9,999 CAD

XL full-body

coverage

1,650W

actual power

NEW

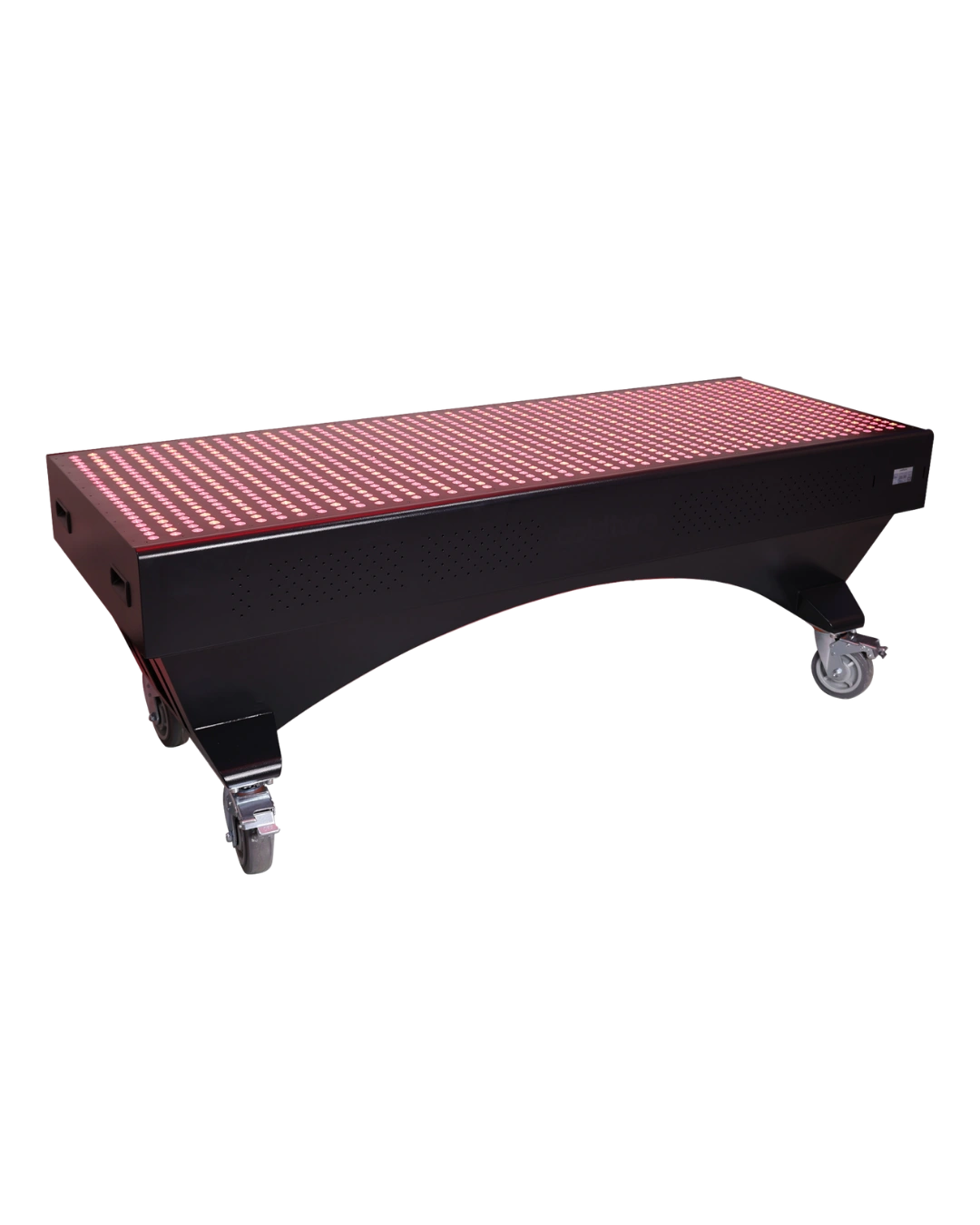

Bed | Lay-Down Red Light System

$20,500 CAD

eight-wavelengths

near + infrared leds

full-body

lay-down coverage

WHAT'S INSIDE

engineered for better sessions

eight therapeutic wavelengths

red and near infrared light across multiple tissue depths. each wavelength independently adjustable.

high-output irradiance

≥1,400 W/m² at 6 inches. meaningful therapeutic dosage in shorter sessions.

flicker-free led array

continuous light output. stable exposure without rapid pulsing.

advanced session control

7 presets + full manual mode with individual wavelength and pulse control.

ultra-low emf technology

built-in fans manage heat during extended sessions. consistent output, protected LED lifespan.

360° system integration

syncs with the bed via group mode. one touchscreen controls both devices.

recovery and performance

a 2012 study published in Lasers in Medical Science found that red and near infrared light exposure before and after exercise significantly reduced muscle soreness and improved recovery markers in trained athletes. a separate 2014 review in Photomedicine and Laser Surgery concluded that photobiomodulation can enhance muscle recovery and reduce exercise-induced oxidative stress.

pain and inflammation

a 2015 systematic review in The BMJ found that low-level laser therapy reduced pain intensity in chronic joint disorders, including osteoarthritis and temporomandibular dysfunction. a 2006 meta-analysis published in The Australian Journal of Physiotherapy reported statistically significant pain reduction across multiple musculoskeletal conditions following photobiomodulation treatment.

immunity and cellular function

a 2017 review in the Journal of Photochemistry and Photobiology B found that photobiomodulation stimulates mitochondrial function and increases ATP production through interaction with cytochrome c oxidase. researchers noted that enhanced cellular energy production may support broader immune function and tissue repair processes.

skin health and anti-aging

a 2014 controlled trial published in Photomedicine and Laser Surgery found that participants treated with 611nm to 650nm red light showed clinically significant improvements in skin complexion, collagen density, and reduction of fine lines and wrinkles. a 2013 study in Seminars in Cutaneous Medicine and Surgery concluded that LED phototherapy promotes collagen synthesis and accelerates tissue repair.

cognitive performance

a 2017 pilot study published in the Journal of Alzheimer's Disease found that transcranial near infrared light stimulation improved attention, memory, and executive function in participants with cognitive impairment. a 2016 study in Neurobiology of Aging reported that near infrared light at 810nm increased cerebral blood flow and oxygenation in healthy adults.

weight management and body composition

a 2011 double-blind, randomized controlled trial published in Obesity Surgery found that participants receiving 635nm to 680nm light therapy showed a statistically significant reduction in waist circumference compared to the placebo group. a 2013 review in Lasers in Surgery and Medicine noted that near infrared wavelengths, including 1060nm, may support fat metabolism through enhanced mitochondrial activity in adipose tissue.

not all panels are the same.

Feature	COLDTURE XTREME	MOST COMPETITORS
irradiance	verified at 6 inches	often at surface or unspecified
wavelengths	8 independently controllable	typically 2-4, not adjustable
1060nm deep tissue	included	rarely offered
led type	dual-chip, no-flicker, 50,000 hr	single-chip, not always flicker-free
session control	touchscreen, app, remote, 7 presets	basic timer or remote only
emf	0 V/m electric, 0.6 mG magnetic	rarely tested or disclosed
panel design	curved for even body coverage	flat panel, uneven distribution

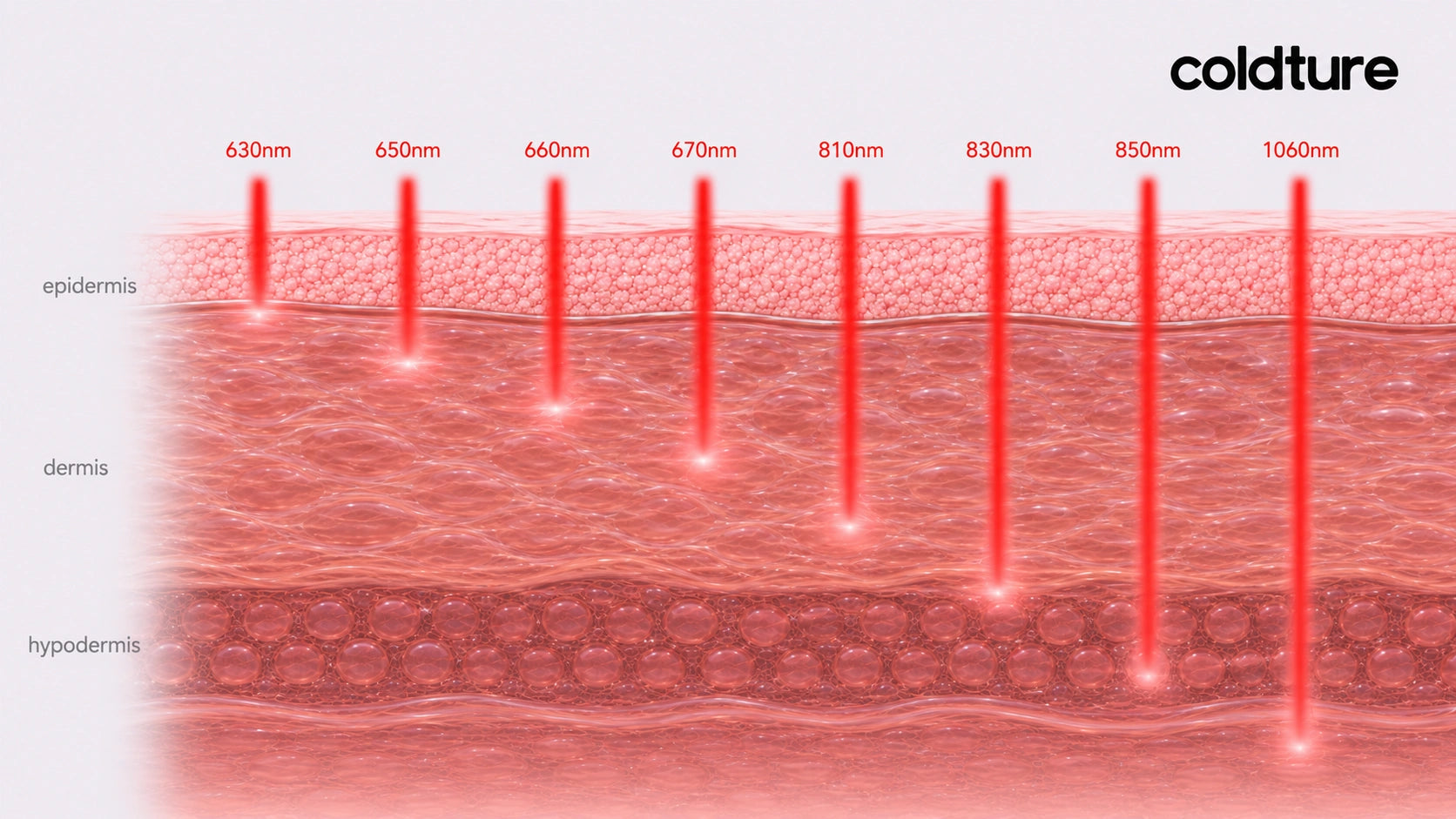

8 WAVELENGTHS

surface to deep tissue. one device.

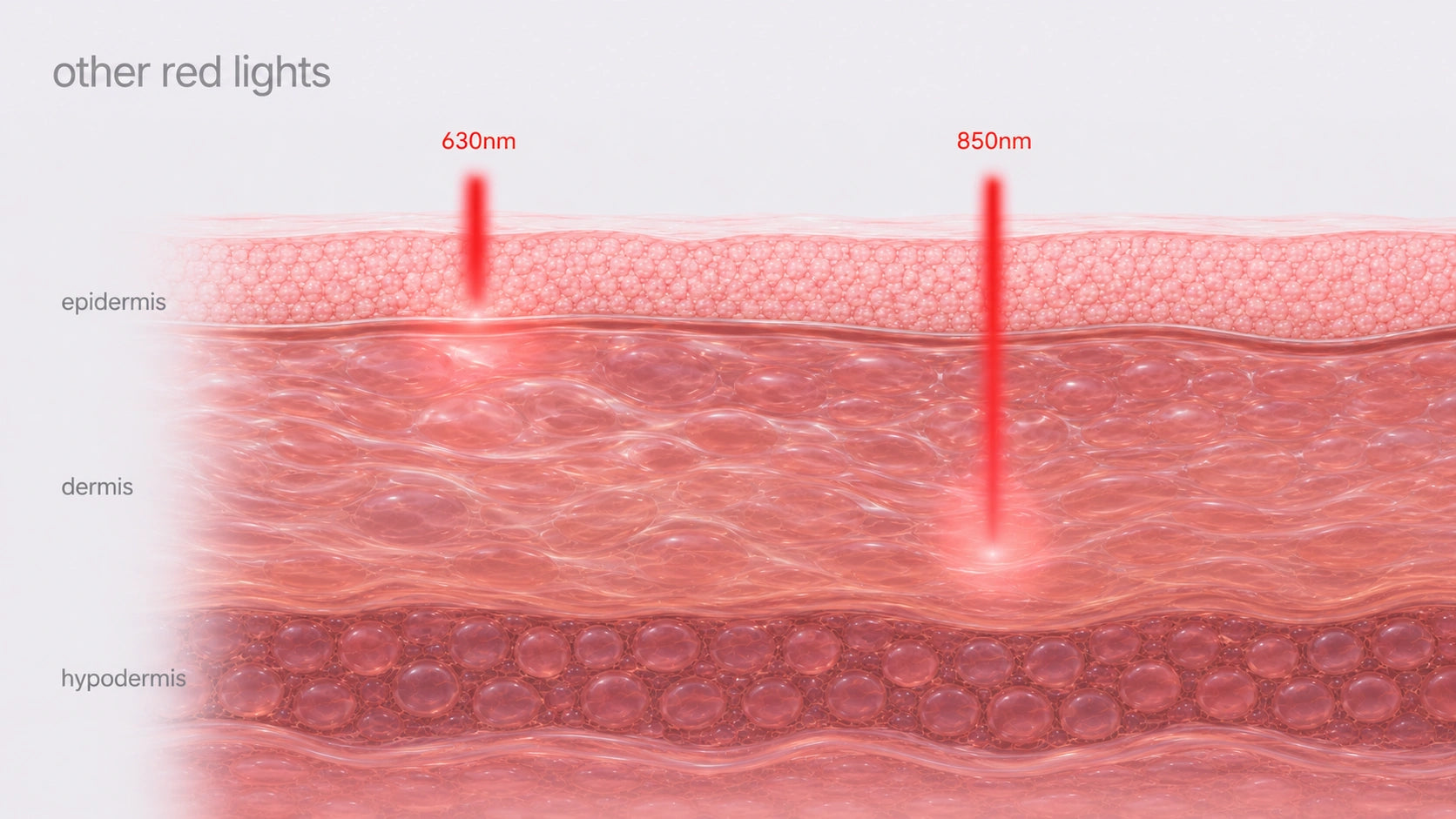

most red light panels rely on only one or two wavelengths. coldture delivers eight carefully selected wavelengths designed to support multiple tissue depths.

collagen
epidermis

dermal layer
hair follicles

most studied
skin + muscle

~5mm depth
mitochondria

soft tissue
bone

tendons
ligaments

deep tissue
ATP + pain

4-5cm deep
fat + muscle

HOW TO USE

three steps. that's it.

one

position

place the panel 6-12 inches from the treatment area. or mount above the bed for lay-down sessions.

two

start session

select your time (5, 10, 15, or 20 minutes) and preset. tap start.

three

relax

sit back or lie down. the session ends automatically.

FOR CLINICS, SPAS AND STUDIOS

bring red light therapy to your clients.

commercial-grade from the ground up. designed to be deployed as a service offering from day one.

commercial-grade build

iron housing, locking casters, emergency stop. 50,000-hour LED lifespan. built for daily multi-client use.

zero staff training

7 presets. clients select, stand or lie down, session runs itself.

revenue-ready

turnkey premium service. $9,999 vs. $40,000+ for comparable XL commercial panels.

one vendor for everything

cold plunge, sauna, red light from coldture. one invoice, one support team.

book a consultation for commercial pricing

PRESETS

7 built-in modes. choose your goal.

Preset	Red Wavelengths	NIR Wavelengths	Timer	Best For
wellness	all at 100%	all at 100%	15 min	general daily use
skin care	630/650 at 80%	810/830 at 80%	10 min	collagen, fine lines
muscle recovery	all at 100%	all at 100%	20 min	post-training
joint pain	all at 100%	all at 100%	20 min	inflammation, joints
sleep	all at 100%	all off	20 min	red only, pre-sleep
fat loss	all at 100%	all at 100%	20 min	body contouring
pets	50%	all at 100%	20 min	animal recovery
